Installation

Source: DICE IOM Manual V12E, Section: Installation, Pages: 14–17
Always use the proper tool for each step. Never use a pipe wrench on the DICE module.

​
Mounting

Source: DICE IOM Manual V12E, Section: Mounting, Page: 14 The DICE module mounts to a planar surface using three mounting holes on the rear face.

​
Requirements

  • Mount with the injection port facing upward
  • Keep the module level to prevent trapped air
  • Allow sufficient clearance for maintenance access
DICE module showing three mounting holes on the rear face

​
Mounting Procedure

1

Position the washers

Place the three provided washers (part 31) between each mounting hole and the mounting surface. The washers isolate the module body from the mounting surface.
2

Verify clearance

Confirm no corner of the module touches the mounting surface. Only the washers should contact the surface.
3

Install mounting screws

Mounting holes accept M6 or 1/4” socket head screws. Torque: 35 in-lb.

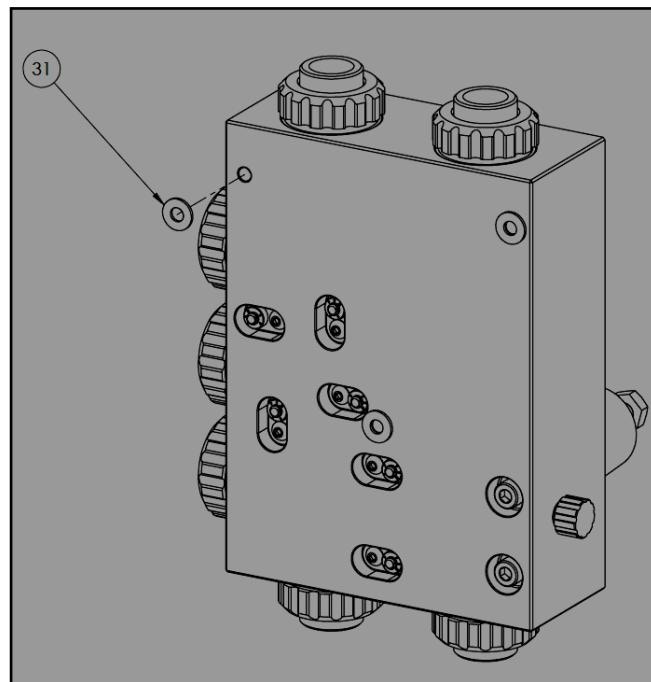

Cross-section showing washers between mounting holes and surface
Using the washers prevents mechanical stress on the DICE body. Stress from improper mounting can cause part failure.

​
Connections

Source: DICE IOM Manual V12E, Section: Connections, Page: 15 DICE uses a mushroom nut connection system that allows tool-free assembly and disassembly.

​
Connection Assembly

1

Prepare the connector

Slide the mushroom nut (25) onto the connector (26/27/28). Insert the pipe or tubing into the connector.
2

Align piping

Ensure pipes and tubing are perfectly aligned with the module port. Misalignment causes mechanical stress that can lead to failure.
3

Verify O-ring position

Confirm the O-ring (30) is properly seated in the connector groove.
4

Hand-tighten only

Thread the mushroom nut onto the port and tighten by hand only. Do not use tools.

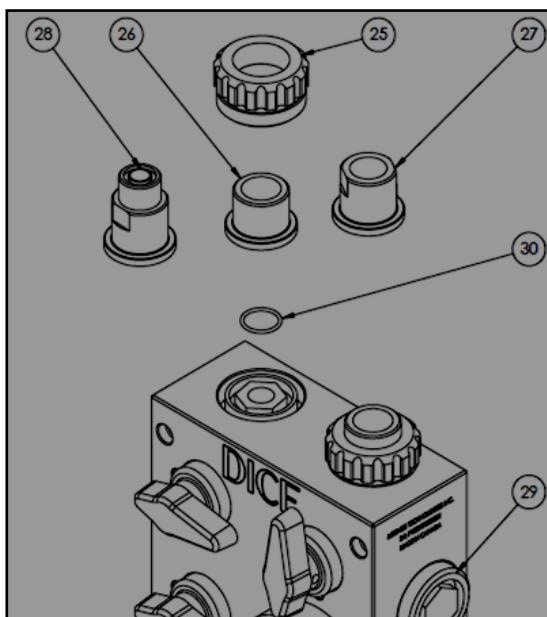

Exploded view showing mushroom nut, connector, and O-ring assembly
PartComponent
25Mushroom nut
26Socket connector
27NPT connector
28Hose connector
29Cap
30O-ring
If connecting accessories (pulsation dampener, flow monitor, etc.) to auxiliary ports, provide independent support for the accessory. The DICE module is not designed to support accessory weight.

​
Typical Installations

Source: DICE IOM Manual V12E, Section: Installation Schematics, Pages: 16–17
The DS configuration uses suction lift from a chemical tank located below the dosing system.

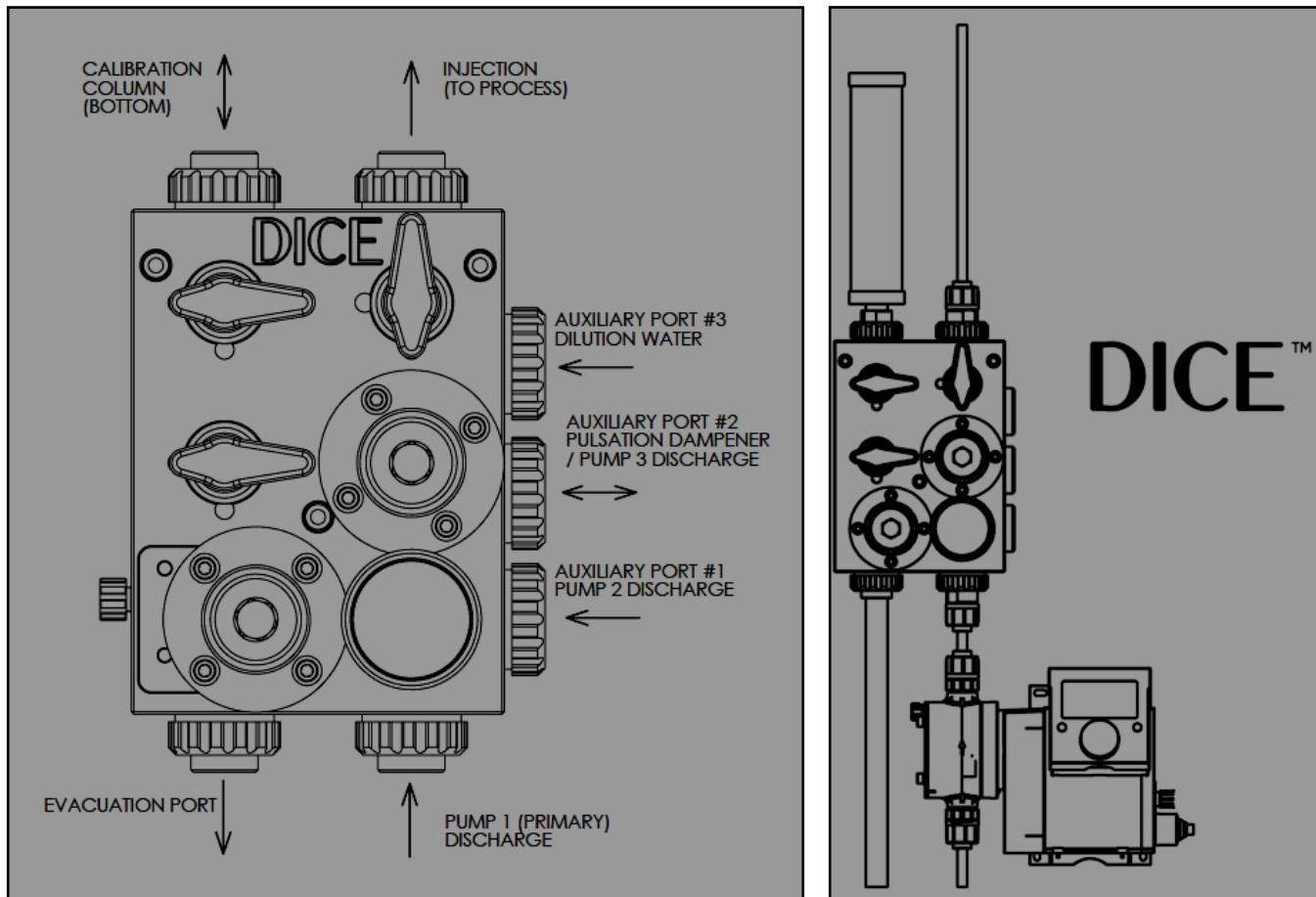

DICE DS system schematic showing pump, module, and process connections

​
DS Component Layout

ComponentFunction
Pump inputSuction from chemical tank
Pump outputFeeds DICE module
Calibration columnConnects to module input line
PRVOverpressure protection
Bleed valvePriming assist, depressurization
PI (Pressure Indicator)System pressure monitoring
BPVMaintains discharge pressure
Injection portTo process
Auxiliary ports 1, 2, 3Secondary pumps, accessories
Evacuation portDrains to chemical tank

​
DS Port Configuration

PortNameTypical Use
Top centerInjectionTo process
Top leftCalibration columnCalibration cylinder
Bottom leftEvacuationDrain to tank
SideAuxiliary 1Pump 2 discharge
SideAuxiliary 2Pulsation dampener
SideAuxiliary 3Dilution water
SidePump inputFrom pump 1

​
Installation Examples

Mount the DICE module vertically above the dosing pump. This configuration:
  • Minimizes piping runs
  • Facilitates gas evacuation
  • Provides clear access for operation

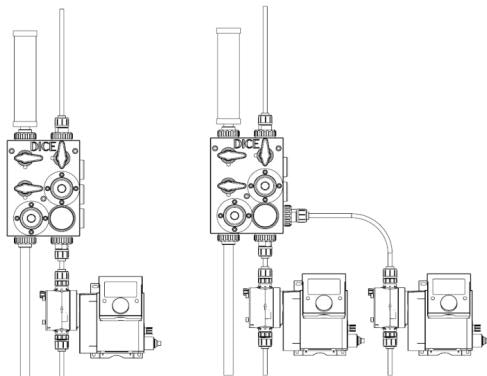

Connect two dosing pumps to auxiliary ports for redundancy. Each pump should include an integral check valve. The DICE module consolidates both pump outputs through a single back pressure and relief system.
Connect a pulsation dampener to an auxiliary port when using diaphragm pumps that create significant pulsation. Support the dampener independently.

DICE DS — Suction Lift

1/2” module for suction lift applications

DICE DM — Flooded Suction

1/2” and 1” modules for flooded suction

​
Sources

DICE IOM Manual V12E

Pages 14–17 • July 2022
