Technical Specifications

Source: DICE IOM Manual V12E, Pages: 7–12 Use this section for operating limits, dimensions, and material options.

Operating Limits

ParameterValue
Maximum pressure250 psi
Maximum flow rate60 LPH (16 GPH)
Ambient operating temperature5°C to 45°C
Liquid operating temperature5°C to 45°C
Storage temperature5°C to 45°C
Internal volume5 in³
Do not use DICE with slurries, crystallizing chemicals, or fluids that have already crystallized.

Dimensions

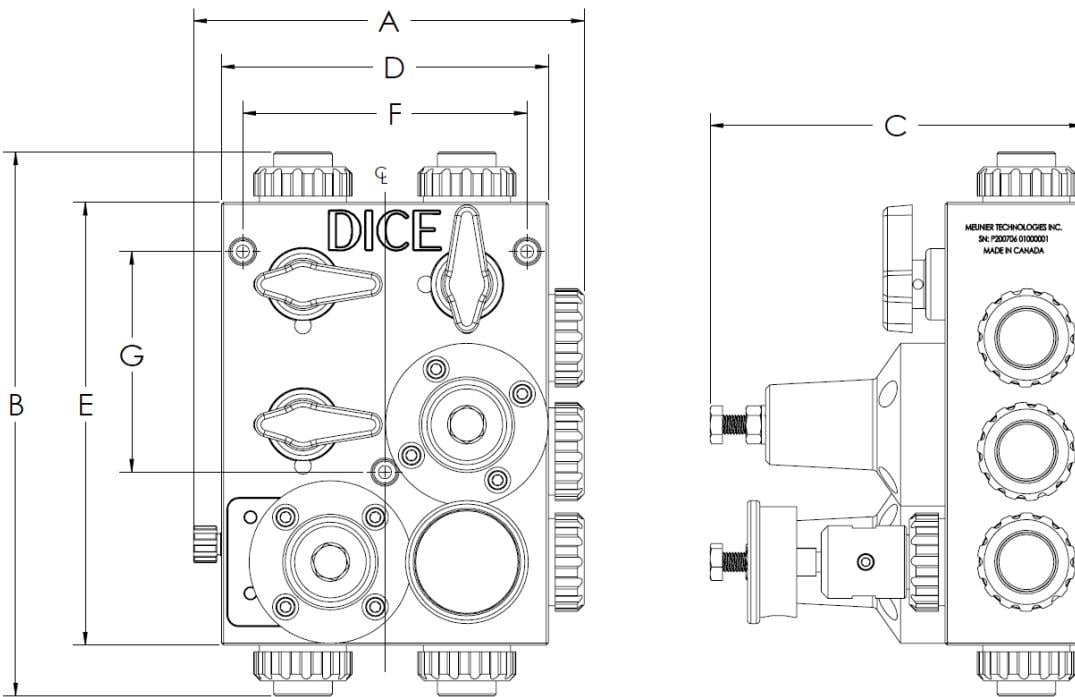

DICE dimensional drawing showing width (A), height (B), depth (C), and mounting hole positions (D, E, F, G)
SizeModelCodeA (Width)B (Height)C (Depth)
1/2”DSDIS2X201.8 mm (7.94”)280.8 mm (11.05”)193.4 mm (7.61”)
1/2”DMDIM2X218.6 mm (8.61”)312.5 mm (12.30”)193.4 mm (7.61”)
1”DMDIM4X269.0 mm (10.59”)376.0 mm (14.80”)232.7 mm (9.16”)
SizeModelDEFG
1/2”DS168.9 mm (6.65”)228.6 mm (9.00”)146.9 mm (5.78”)113.9 mm (4.48”)
1/2”DM181.6 mm (7.15”)260.3 mm (10.25”)159.6 mm (6.28”)145.7 mm (5.73”)
1”DM223.0 mm (8.78”)296.0 mm (11.65”)194.0 mm (7.64”)150.0 mm (5.90”)

Model Number Nomenclature

The model number and serial number are engraved on the top right side of the module block. Example format:
DIS21-MVII-3333444Z    (DICE DS)
DIM21-MVII-3333444Z4   (DICE DM)
PositionCodeMeaning
1-2DIDICE family
3S or MDS (Suction Lift) or DM (Flooded Suction)
42 or 4Size: 2 = 1/2”, 4 = 1”
51 or 2Pressure: 1 = 150 psi, 2 = 250 psi
7M, V, or DBlock material
8V, C, or DWetted parts material
9I or EO-ring material
10I or EDiaphragm material
11-191-9, Z, WConnector codes for each port position

Block Materials

CodeMaterial
VPVC
MPMMA (Acrylic)
DPVDF

Wetted Parts Materials

CodeMaterial
VPVC
CCPVC
DPVDF

Elastomer Materials (O-rings and Diaphragms)

CodeMaterial
IViton (FKM)
EEPDM

Standard Materials

  • Ball valve handle: ABS or HDPE plastic
  • Ball valve seat: Virgin PTFE
  • Bolts, nuts, washers, set screws: 18-8 stainless steel
Vented ball valves are available as an option. Other materials can be supplied upon request—contact Meunier Technologies.

Connector Options

Connectors attach to the module via the mushroom nut system. Each port position in the model number specifies the connector type.
CodeDescription
0Mushroom nut only
11/2” MNPT with LMI tubing ferrule adaptor (kit included)
21/2” FNPT
31/2” Socket for SCH 80 rigid piping
4Cap
5G5/8 with Grundfos tubing ferrule adaptor
6Socket for 20mm OD rigid piping
7Flare connector for 1/2” OD PFA tubing
ZIsolator and pressure gauge
WNo connector, no mushroom nut

Port Positions

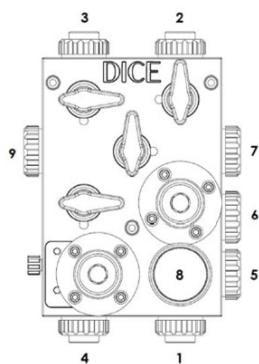

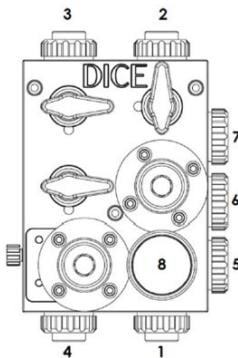

DICE DS showing numbered port positions 1-9

Model Selection Guide

Application FactorRecommendation
Suction typeSuction lift: DS or DM. Flooded suction: DM only
Flow rate0–60 LPH: 1/2” DS or DM. 0–1000 LPH: 1” DM
Pressure0–150 psi: 1” DM. 0–250 psi: 1/2” DS or DM
Chemical compatibilitySelect block, wetted parts, and elastomer materials based on chemical compatibility charts
The DM model is more versatile than the DS. Many facilities standardize on DM to simplify purchasing, spare parts inventory, and operator training.

Sources

DICE IOM Manual V12E

Pages 7–12 • July 2022
